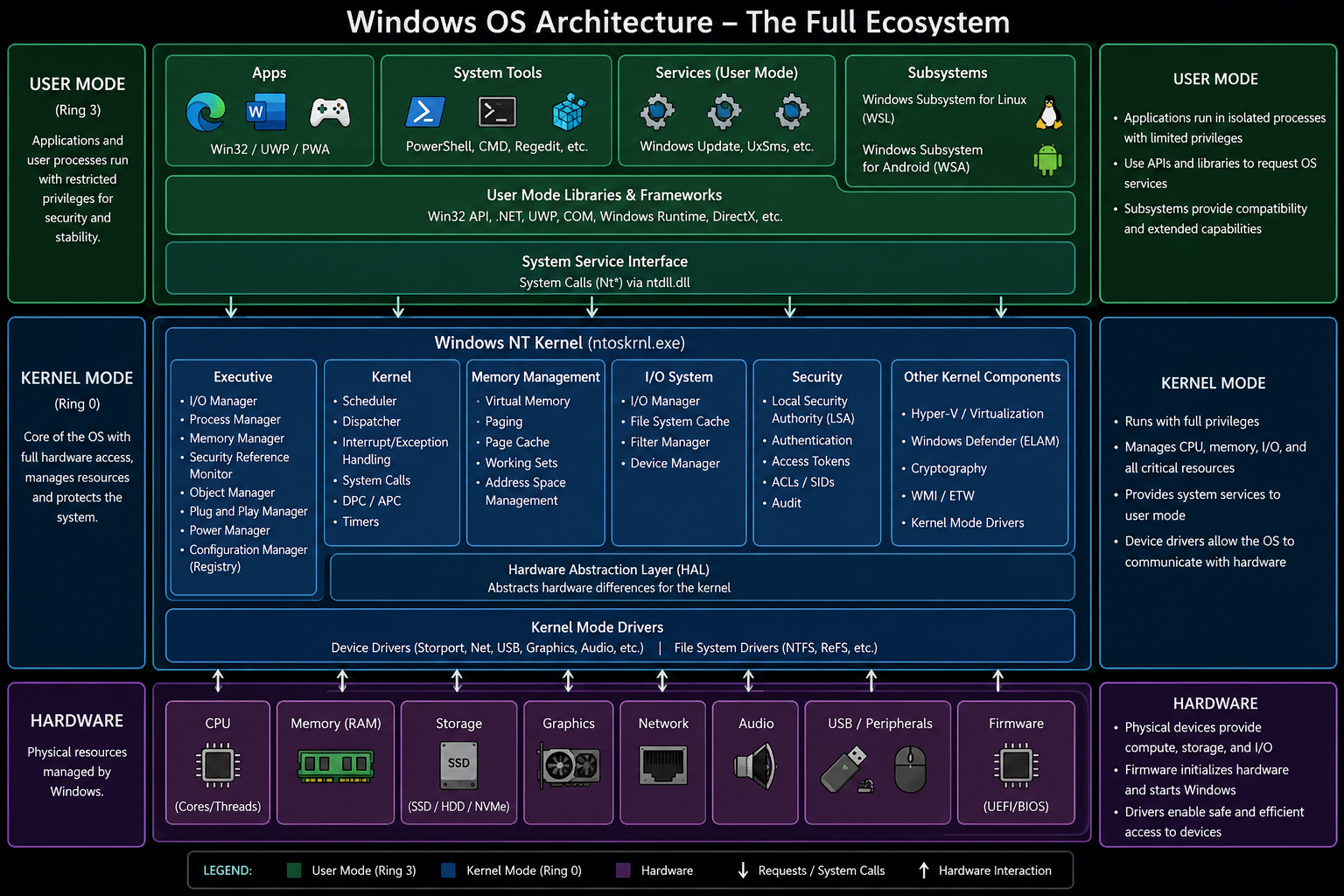

Windows OS Ecosystem

Application
    ↓
Win32 API
    ↓
ntdll.dll
    ↓
System Call (syscall)
    ↓
Kernel (ntoskrnl.exe)
    ↓
Drivers
    ↓
Hardware

This path explains most Windows behavior.

User Mode Components

Component	Purpose	Examples
Applications	Perform user tasks	Chrome, Outlook, Word
Processes	Running instances of programs	chrome.exe
Threads	Units of execution	Browser tab thread
DLLs	Shared functionality	kernel32.dll
Win32 API	Operating system interface	CreateFile(), CreateProcess()
.NET Runtime	Managed execution environment	C# applications
COM	Component communication	Office automation
Services (User Mode)	Background functionality	Windows Update
Subsystems	Compatibility layers	WSL

User Mode DLL Hierarchy

Application
    ↓
user32.dll
kernel32.dll
advapi32.dll
ws2_32.dll
    ↓
ntdll.dll
    ↓
Kernel

Common DLLs

DLL	Purpose
kernel32.dll	Process, memory, file operations
user32.dll	GUI
gdi32.dll	Graphics
advapi32.dll	Security, Registry
ws2_32.dll	Networking
crypt32.dll	Cryptography
ntdll.dll	Native API + Syscalls

Native API Layer

Most Win32 functions eventually reach:

ntdll.dll

Examples:

Win32 API	Native API
CreateFile()	NtCreateFile()
CreateProcess()	NtCreateUserProcess()
VirtualAlloc()	NtAllocateVirtualMemory()
OpenProcess()	NtOpenProcess()

This is where many EDR hooks live.

Kernel Executive Components

Component	Responsibility
Process Manager	Processes and threads
Memory Manager	Virtual memory (RAM)
I/O Manager	Device communication
Security Reference Monitor	Access control, permissions
Object Manager	Named kernel objects
Configuration Manager	Registry
Plug and Play Manager	Device detection
Power Manager	Sleep, hibernate

Core Kernel Responsibilities

Component	Purpose
Scheduler	Chooses running thread
Dispatcher	Context switching
Interrupt Handling	Hardware events
Exception Handling	Faults/crashes
APC	Deferred execution
DPC	High-priority deferred work

Memory Management

Concept	Description
Virtual Memory	Process sees private address space
Paging	Memory swapped to disk
Page Tables	VA → PA mapping
Working Set	Active memory pages
Pool Memory	Kernel allocations
Page Cache	Cached file data

Windows Object Model

Everything is an object.

Object	Example
Process	notepad.exe
Thread	Worker thread
File	C:\test.txt
Registry Key	HKLM\Software
Event	Synchronization object
Mutex	Synchronization object
Token	Security context

Access is controlled by handles.

Object
    ↓
Handle
    ↓
Access Rights

Security Architecture

Security Identifier (SID)

User
    ↓
SID
    ↓
Access Check

Example:

S-1-5-18

Local SYSTEM

Access Token

Contains:

User SID
Group SIDs
Privileges
Integrity Level

Examples:

Token	Description
User	Normal user
Administrator	Elevated user
SYSTEM	Highest local privilege

Integrity Levels

Level	Typical Use
Low	Sandbox
Medium	Normal user
High	Administrator
System	SYSTEM

Driver Architecture

Driver Type	Example
File System Driver	NTFS
Network Driver	TCP/IP
USB Driver	USB stack
Storage Driver	NVMe
Graphics Driver	GPU driver
Filter Driver	AV/EDR

Hardware Abstraction Layer (HAL)

Purpose:

Kernel
    ↓
HAL
    ↓
Hardware

HAL hides hardware differences from Windows.

Without HAL every CPU and motherboard would require separate kernel code.

Interrupt Flow

Keyboard Key Press
        ↓
Interrupt
        ↓
HAL
        ↓
Kernel ISR
        ↓
Driver
        ↓
Input Subsystem
        ↓
Application

Process Creation

User Clicks EXE
        ↓
CreateProcess()
        ↓
NtCreateUserProcess()
        ↓
Kernel
        ↓
EPROCESS Created
        ↓
Thread Created
        ↓
Image Loaded
        ↓
Execution Begins

File Access

Application
        ↓
CreateFile()
        ↓
NtCreateFile()
        ↓
I/O Manager
        ↓
File System Driver
        ↓
Storage Driver
        ↓
Disk

Network Access

Application
        ↓
Winsock
        ↓
TCP/IP Stack
        ↓
Network Driver
        ↓
NIC
        ↓
Network

Important DFIR Artifacts

Area	Examples
Execution	Prefetch
Persistence	Run Keys
Authentication	Security Log
Networking	SRUM
Timeline	MFT
User Activity	Jump Lists
Application Activity	Amcache
PowerShell	ScriptBlock Logs

Important Offensive Targets

Target	Why
Access Tokens	Privilege escalation
LSASS	Credentials
Services	Persistence
Scheduled Tasks	Persistence
Registry	Configuration
COM	Lateral movement
Drivers	Kernel access
WMI	Execution
ETW	Detection visibility
AMSI	Script inspection

Windows Mental Model for Operators

User Mode
    ↓
APIs
    ↓
Native APIs
    ↓
System Calls
    ↓
Kernel
    ↓
Drivers
    ↓
Hardware

Everything in Windows eventually becomes one of four things:

CPU execution
Memory access
File I/O
Network I/O

Every attack, defense, forensic artifact, and operating system feature ultimately manipulates one or more of these four resources.
